Safety Engineered Hoist Rings - Metric
Swivel Hoist Rings (11 Styles)

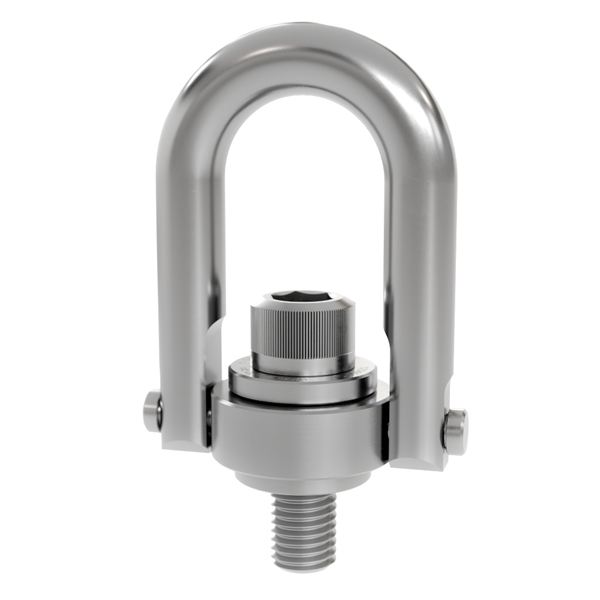

ADB Safety Engineered Stainless Steel hoist rings provide exceptional corrosion resistance with 300 Series Stainless Steel construction and working load limits from 275 to 50,000 lbs. These premium hoist rings maintain full 360° swivel and 180° pivot capability while meeting ASTM A96 standards with a 5:1 design factor.
Perfect for marine, food processing, and outdoor environments, the stainless steel series offers the same reliable Safety Engineered design with detailed specifications for dimensions, thread sizes, torque values, and weights. Available in both standard and long bar configurations for versatile lifting solutions.
With 150% proof load testing and robust forged construction, these stainless hoist rings deliver long-term performance in harsh conditions. Find the perfect stainless steel hoist ring for your application in imperial or metric measurements.

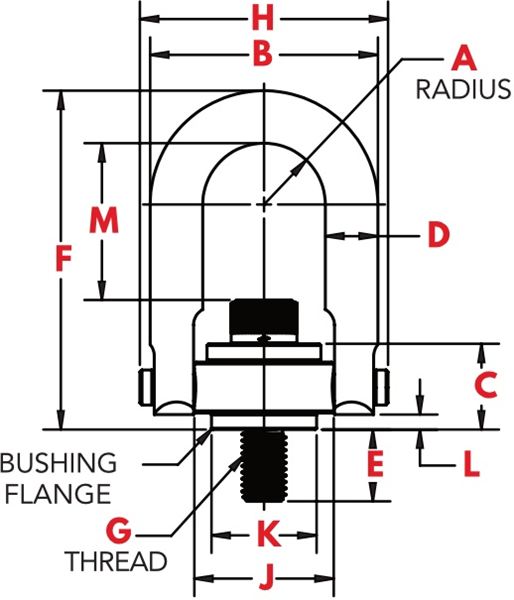

Item # |
CAD |
IntegrationID |
Torque (Nm) |
Rated Load (kg) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) (+/-3.0) |
F (mm) |
G (Thread) |
H (mm) |
J (mm) |
K (mm) |
L (mm) |
M (mm) |
Hex Size (mm) |
Safety Instructions |
Vendor Part Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MA-29808SEMSS |
CAD
N/A
|
Torque (Nm) N/A 5 | Rated Load (kg) N/A 200 | A (mm) N/A 10.9 | B (mm) N/A 40.9 | C (mm) N/A 18 | D (mm) N/A 9.5 | E (mm) (+/-3.0) N/A 17 | F (mm) N/A 67.8 | G (Thread) N/A M8 x 1.25 | H (mm) N/A 46.7 | J (mm) N/A 25.4 | K (mm) N/A 19.1 | L (mm) N/A 4.3 | M (mm) N/A 32.1 | Hex Size (mm) N/A 6 | Safety Instructions N/A Safety Instructions | Vendor Part Number N/A 29808 | |
| MA-29810SEMSS |
CAD
N/A
|
Torque (Nm) N/A 8 | Rated Load (kg) N/A 225 | A (mm) N/A 10.9 | B (mm) N/A 40.9 | C (mm) N/A 18 | D (mm) N/A 9.5 | E (mm) (+/-3.0) N/A 17 | F (mm) N/A 67.8 | G (Thread) N/A M10 x 1.5 | H (mm) N/A 46.7 | J (mm) N/A 25.4 | K (mm) N/A 19.1 | L (mm) N/A 4.3 | M (mm) N/A 30.2 | Hex Size (mm) N/A 8 | Safety Instructions N/A Safety Instructions | Vendor Part Number N/A 29810 | |
| MA-29812SEMSS |
CAD
N/A
|
Torque (Nm) N/A 18 | Rated Load (kg) N/A 525 | A (mm) N/A 22.4 | B (mm) N/A 82.5 | C (mm) N/A 31 | D (mm) N/A 19 | E (mm) (+/-3.0) N/A 19 | F (mm) N/A 121.4 | G (Thread) N/A M12 x 1.75 | H (mm) N/A 89.4 | J (mm) N/A 50.5 | K (mm) N/A 38 | L (mm) N/A 4.1 | M (mm) N/A 59.4 | Hex Size (mm) N/A 10 | Safety Instructions N/A Safety Instructions | Vendor Part Number N/A 29812 | |
| MA-29814SEMSS |
CAD
N/A
|
Torque (Nm) N/A 18 | Rated Load (kg) N/A 525 | A (mm) N/A 22.4 | B (mm) N/A 82.5 | C (mm) N/A 31 | D (mm) N/A 19 | E (mm) (+/-3.0) N/A 19 | F (mm) N/A 170.6 | G (Thread) N/A M12 x 1.75 | H (mm) N/A 89.4 | J (mm) N/A 50.5 | K (mm) N/A 38 | L (mm) N/A 4.1 | M (mm) N/A 108.6 | Hex Size (mm) N/A 10 | Safety Instructions N/A Safety Instructions | Vendor Part Number N/A 29814 | |
| MA-29816SEMSS |
CAD
N/A
|
Torque (Nm) N/A 40 | Rated Load (kg) N/A 950 | A (mm) N/A 22.4 | B (mm) N/A 82.5 | C (mm) N/A 31 | D (mm) N/A 19 | E (mm) (+/-3.0) N/A 24 | F (mm) N/A 121.4 | G (Thread) N/A M16 x 2.0 | H (mm) N/A 89.4 | J (mm) N/A 50.5 | K (mm) N/A 38 | L (mm) N/A 4.1 | M (mm) N/A 55.4 | Hex Size (mm) N/A 14 | Safety Instructions N/A Safety Instructions | Vendor Part Number N/A 29816 | |
| MA-29818SEMSS |
CAD
N/A
|
Torque (Nm) N/A 40 | Rated Load (kg) N/A 950 | A (mm) N/A 22.4 | B (mm) N/A 82.5 | C (mm) N/A 31 | D (mm) N/A 19 | E (mm) (+/-3.0) N/A 24 | F (mm) N/A 170.6 | G (Thread) N/A M16 x 2.0 | H (mm) N/A 89.4 | J (mm) N/A 50.5 | K (mm) N/A 38 | L (mm) N/A 4.1 | M (mm) N/A 104.4 | Hex Size (mm) N/A 14 | Safety Instructions N/A Safety Instructions | Vendor Part Number N/A 29818 | |
| MA-29820SEMSS |
CAD
N/A
|
Torque (Nm) N/A 68 | Rated Load (kg) N/A 1,100 | A (mm) N/A 22.4 | B (mm) N/A 82.5 | C (mm) N/A 31 | D (mm) N/A 19 | E (mm) (+/-3.0) N/A 30 | F (mm) N/A 121.4 | G (Thread) N/A M20 x 2.5 | H (mm) N/A 89.4 | J (mm) N/A 50.5 | K (mm) N/A 38 | L (mm) N/A 4.1 | M (mm) N/A 51.4 | Hex Size (mm) N/A 17 | Safety Instructions N/A Safety Instructions | Vendor Part Number N/A 29820 | |
| MA-29821SEMSS |
CAD
N/A
|
Torque (Nm) N/A 68 | Rated Load (kg) N/A 1,100 | A (mm) N/A 22.4 | B (mm) N/A 82.5 | C (mm) N/A 31 | D (mm) N/A 19 | E (mm) (+/-3.0) N/A 30 | F (mm) N/A 170.6 | G (Thread) N/A M20 x 2.5 | H (mm) N/A 89.4 | J (mm) N/A 50.5 | K (mm) N/A 38 | L (mm) N/A 4.1 | M (mm) N/A 100.4 | Hex Size (mm) N/A 17 | Safety Instructions N/A Safety Instructions | Vendor Part Number N/A 29821 | |
| MA-29822SEMSS |
CAD
N/A
|
Torque (Nm) N/A 68 | Rated Load (kg) N/A 1,500 | A (mm) N/A 35.6 | B (mm) N/A 121.2 | C (mm) N/A 43.4 | D (mm) N/A 25.4 | E (mm) (+/-3.0) N/A 29 | F (mm) N/A 165.8 | G (Thread) N/A M20 x 2.5 | H (mm) N/A 130.5 | J (mm) N/A 76.2 | K (mm) N/A 58.7 | L (mm) N/A 6.1 | M (mm) N/A 77 | Hex Size (mm) N/A 17 | Safety Instructions N/A Safety Instructions | Vendor Part Number N/A 29822 | |
| MA-29823SEMSS |
CAD
N/A
|
Torque (Nm) N/A 68 | Rated Load (kg) N/A 1,500 | A (mm) N/A 35.6 | B (mm) N/A 121.2 | C (mm) N/A 43.4 | D (mm) N/A 25.4 | E (mm) (+/-3.0) N/A 29 | F (mm) N/A 206.7 | G (Thread) N/A M20 x 2.5 | H (mm) N/A 130.5 | J (mm) N/A 76.2 | K (mm) N/A 58.7 | L (mm) N/A 6.1 | M (mm) N/A 117.9 | Hex Size (mm) N/A 17 | Safety Instructions N/A Safety Instructions | Vendor Part Number N/A 29823 | |
| MA-29824SEMSS |
CAD
N/A
|
Torque (Nm) N/A 155 | Rated Load (kg) N/A 2,100 | A (mm) N/A 35.6 | B (mm) N/A 121.2 | C (mm) N/A 43.4 | D (mm) N/A 25.4 | E (mm) (+/-3.0) N/A 34 | F (mm) N/A 165.8 | G (Thread) N/A M24 x 3.0 | H (mm) N/A 130.5 | J (mm) N/A 76.2 | K (mm) N/A 58.7 | L (mm) N/A 6.1 | M (mm) N/A 73 | Hex Size (mm) N/A 19 | Safety Instructions N/A Safety Instructions | Vendor Part Number N/A 29824 | |
| MA-29826SEMSS |
CAD
N/A
|
Torque (Nm) N/A 155 | Rated Load (kg) N/A 2,100 | A (mm) N/A 35.6 | B (mm) N/A 121.2 | C (mm) N/A 43.4 | D (mm) N/A 25.4 | E (mm) (+/-3.0) N/A 34 | F (mm) N/A 206.7 | G (Thread) N/A M24 x 3.0 | H (mm) N/A 130.5 | J (mm) N/A 76.2 | K (mm) N/A 58.7 | L (mm) N/A 6.1 | M (mm) N/A 113.9 | Hex Size (mm) N/A 19 | Safety Instructions N/A Safety Instructions | Vendor Part Number N/A 29826 | |
| MA-29830SEMSS |
CAD
N/A
|
Torque (Nm) N/A 155 | Rated Load (kg) N/A 2,250 | A (mm) N/A 35.6 | B (mm) N/A 121.2 | C (mm) N/A 43.4 | D (mm) N/A 25.4 | E (mm) (+/-3.0) N/A 54 | F (mm) N/A 165.8 | G (Thread) N/A M30 x 3.5 | H (mm) N/A 130.5 | J (mm) N/A 76.2 | K (mm) N/A 58.7 | L (mm) N/A 6.1 | M (mm) N/A 67 | Hex Size (mm) N/A 22 | Safety Instructions N/A Safety Instructions | Vendor Part Number N/A 29830 | |
| MA-29832SEMSS |
CAD
N/A
|
Torque (Nm) N/A 155 | Rated Load (kg) N/A 2,250 | A (mm) N/A 35.6 | B (mm) N/A 121.2 | C (mm) N/A 43.4 | D (mm) N/A 25.4 | E (mm) (+/-3.0) N/A 54 | F (mm) N/A 206.7 | G (Thread) N/A M30 x 3.5 | H (mm) N/A 130.5 | J (mm) N/A 76.2 | K (mm) N/A 58.7 | L (mm) N/A 6.1 | M (mm) N/A 109.9 | Hex Size (mm) N/A 22 | Safety Instructions N/A Safety Instructions | Vendor Part Number N/A 29832 | |
| MA-29840SEMSS |
CAD
N/A
|
Torque (Nm) N/A 315 | Rated Load (kg) N/A 3,500 | A (mm) N/A 44.5 | B (mm) N/A 152.4 | C (mm) N/A 53.6 | D (mm) N/A 31.8 | E (mm) (+/-3.0) N/A 46 | F (mm) N/A 221.7 | G (Thread) N/A M30 x 3.5 | H (mm) N/A 165.1 | J (mm) N/A 95.5 | K (mm) N/A 81.3 | L (mm) N/A 8.9 | M (mm) N/A 106.3 | Hex Size (mm) N/A 22 | Safety Instructions N/A Safety Instructions | Vendor Part Number N/A 29840 | |
| MA-29842SEMSS |
CAD
N/A
|
Torque (Nm) N/A 315 | Rated Load (kg) N/A 3,500 | A (mm) N/A 44.5 | B (mm) N/A 152.4 | C (mm) N/A 53.6 | D (mm) N/A 31.8 | E (mm) (+/-3.0) N/A 66 | F (mm) N/A 221.7 | G (Thread) N/A M30 x 3.5 | H (mm) N/A 165.1 | J (mm) N/A 95.5 | K (mm) N/A 81.3 | L (mm) N/A 8.9 | M (mm) N/A 106.3 | Hex Size (mm) N/A 22 | Safety Instructions N/A Safety Instructions | Vendor Part Number N/A 29842 | |
| MA-29850SEMSS |
CAD
N/A
|
Torque (Nm) N/A 545 | Rated Load (kg) N/A 5,500 | A (mm) N/A 57.2 | B (mm) N/A 203.2 | C (mm) N/A 71.4 | D (mm) N/A 44.5 | E (mm) (+/-3.0) N/A 69 | F (mm) N/A 316.7 | G (Thread) N/A M36 x 4.0 | H (mm) N/A 217.2 | J (mm) N/A 123.7 | K (mm) N/A 106.7 | L (mm) N/A 11.9 | M (mm) N/A 164.8 | Hex Size (mm) N/A 27 | Safety Instructions N/A Safety Instructions | Vendor Part Number N/A 29850 | |
| MA-29852SEMSS |
CAD
N/A
|
Torque (Nm) N/A 545 | Rated Load (kg) N/A 6,250 | A (mm) N/A 57.2 | B (mm) N/A 203.2 | C (mm) N/A 71.4 | D (mm) N/A 44.5 | E (mm) (+/-3.0) N/A 79 | F (mm) N/A 316.7 | G (Thread) N/A M42 x 4.5 | H (mm) N/A 217.2 | J (mm) N/A 123.7 | K (mm) N/A 106.7 | L (mm) N/A 11.9 | M (mm) N/A 158.8 | Hex Size (mm) N/A 2 1/4” | Safety Instructions N/A Safety Instructions | Vendor Part Number N/A 29852 | |
| MA-29854SEMSS |
CAD
N/A
|
Torque (Nm) N/A 545 | Rated Load (kg) N/A 6,750 | A (mm) N/A 57.2 | B (mm) N/A 203.2 | C (mm) N/A 71.4 | D (mm) N/A 44.5 | E (mm) (+/-3.0) N/A 79 | F (mm) N/A 316.7 | G (Thread) N/A M48 x 5.0 | H (mm) N/A 217.2 | J (mm) N/A 123.7 | K (mm) N/A 106.7 | L (mm) N/A 11.9 | M (mm) N/A 152.8 | Hex Size (mm) N/A 2 1/4” | Safety Instructions N/A Safety Instructions | Vendor Part Number N/A 29854 | |
| MA-29860SEMSS |
CAD
N/A
|
Torque (Nm) N/A 1,425 | Rated Load (kg) N/A 11,000 | A (mm) N/A 76.2 | B (mm) N/A 266.7 | C (mm) N/A 104 | D (mm) N/A 57.2 | E (mm) (+/-3.0) N/A 102 | F (mm) N/A 428.5 | G (Thread) N/A M64 x 6.0 | H (mm) N/A 296.4 | J (mm) N/A 165.6 | K (mm) N/A 146.1 | L (mm) N/A 28.4 | M (mm) N/A 203.3 | Hex Size (mm) N/A 3” | Safety Instructions N/A Safety Instructions | Vendor Part Number N/A 29860 |
