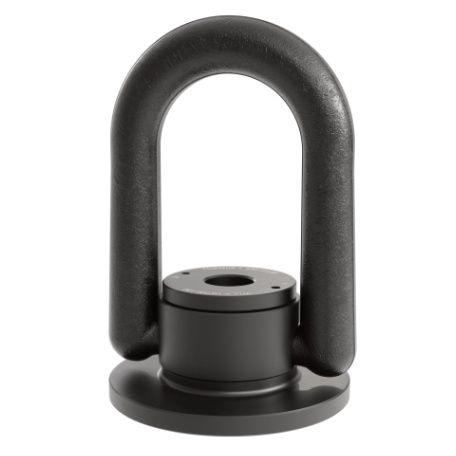

• Heavy-Duty--Swivel-Pivot-Lift---image_r30_c2

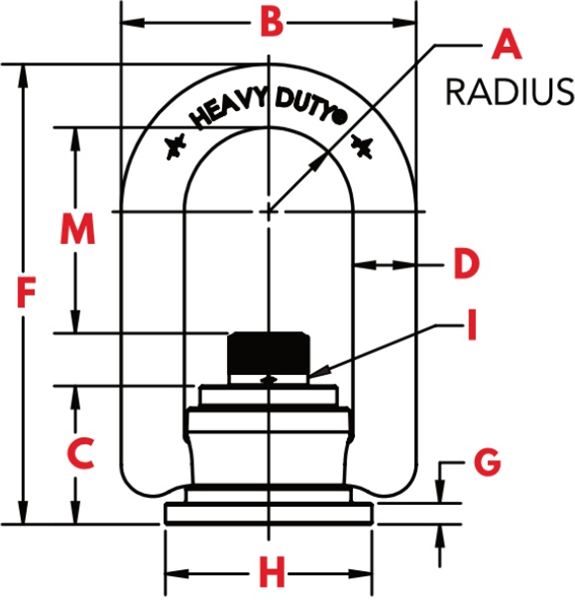

  • Heavy-Duty--Weld-Mount---line-drawing_r4_c2

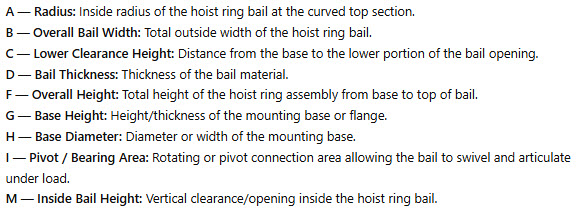

  • HR-7725

We have a huge variety of industrial hoist rings. Engineered and manufactured to strict standards, our industrial hoist rings are available in several styles including: flip flop hoist rings, heavy duty® hoist rings, safety engineered hoist rings, and many more.

Features:

  • Material: Forged Alloy Steel With Minimum Tensile Strength of 180,000 psi
  • Range of movement: Pivot 180°, Swivel 360°
  • Minimum Safety Factor= 5:1
  • Meets Military Specification No. MIL-STD 1365(11) or MIL-STD 209C
  • American Heavy Duty Hoist Rings are specified and used in Nuclear Energy Equipment
  • 100% Magnetic Particle Inspected
  • Meets OSHA Standards
  • Destructive testing by outside independent laboratories
  • Complete line through 30,000 Pounds Load Range

1 - 25 of 53 | Results Per Page | View | Unit of Measure
1 2 3
Request Information Compare Items Search by Specification
Clear Filter

Rated Load (lbs)

A (in)

B (in)

C (in)

D (in)

G (Thread)

Item #

CAD

IntegrationID

Rated Load (lbs)

Torque (ft-lbs)

A (in)

B (in)

C (in)

D (in)

E (in) (+/-0.12)

F (in)

G (Thread)

K (in)

L (in)

M (in)

Hex Size (in)

Vendor Part Number

Safety Instructions

N/A N/A 550 N/A 5 N/A .65 N/A 2.29 N/A .96 N/A .44 N/A .56 N/A 3.23 N/A 1/4-20 N/A 1.25 N/A 0.15 N/A 1.57 N/A 3/16 N/A
33112 		N/A Safety Instructions
N/A N/A 550 N/A 5 N/A .65 N/A 2.29 N/A .96 N/A .44 N/A .56 N/A 3.23 N/A 1/4-28 N/A 1.25 N/A 0.15 N/A 1.57 N/A 3/16 N/A
33113 		N/A Safety Instructions
N/A N/A 800 N/A 7 N/A .65 N/A 2.29 N/A .96 N/A .44 N/A .56 N/A 3.23 N/A 5/16-18 N/A 1.25 N/A 0.15 N/A 1.51 N/A 1/4 N/A
33212 		N/A Safety Instructions
N/A N/A 800 N/A 7 N/A .65 N/A 2.29 N/A .96 N/A .44 N/A .56 N/A 3.23 N/A 5/16-24 N/A 1.25 N/A 0.15 N/A 1.51 N/A 1/4 N/A
33213 		N/A Safety Instructions
N/A N/A 800 N/A 7 N/A .65 N/A 2.29 N/A .96 N/A .44 N/A 1.06 N/A 3.23 N/A 5/16-18 N/A 1.25 N/A 0.15 N/A 1.51 N/A 1/4 N/A
33214 		N/A Safety Instructions
N/A N/A 1,000 N/A 12 N/A .65 N/A 2.29 N/A .96 N/A .44 N/A .56 N/A 3.23 N/A 3/8-16 N/A 1.25 N/A 0.15 N/A 1.45 N/A 5/16 N/A
33312 		N/A Safety Instructions
N/A N/A 1,000 N/A 12 N/A .65 N/A 2.29 N/A .96 N/A .44 N/A .56 N/A 3.23 N/A 3/8-24 N/A 1.25 N/A 0.15 N/A 1.45 N/A 5/16 N/A
33313 		N/A Safety Instructions
N/A N/A 1,000 N/A 12 N/A .65 N/A 2.29 N/A .96 N/A .44 N/A 1.06 N/A 3.23 N/A 3/8-16 N/A 1.25 N/A 0.15 N/A 1.45 N/A 5/16 N/A
33314 		N/A Safety Instructions
N/A N/A 2,250 N/A 26 N/A .65 N/A 2.29 N/A .96 N/A .44 N/A 1.06 N/A 3.23 N/A 1/2-13 N/A 1.25 N/A 0.15 N/A 1.45 N/A 3/8 N/A
33316 		N/A Safety Instructions
N/A N/A 2,250 N/A 26 N/A .65 N/A 2.29 N/A .96 N/A .44 N/A 1.06 N/A 3.23 N/A 1/2-20 N/A 1.25 N/A 0.15 N/A 1.45 N/A 3/8 N/A
33317 		N/A Safety Instructions
N/A N/A 2,500 N/A 28 N/A 1.00 N/A 3.50 N/A 1.50 N/A .75 N/A .75 N/A 5.31 N/A 1/2-13 N/A 1.89 N/A 0.17 N/A 2.56 N/A 3/8 N/A
33512 		N/A Safety Instructions
N/A N/A 2,500 N/A 28 N/A 1.00 N/A 3.50 N/A 1.50 N/A .75 N/A .75 N/A 6.87 N/A 1/2-13 N/A 1.89 N/A 0.17 N/A 4.12 N/A 3/8 N/A
33513 		N/A Safety Instructions
N/A N/A 2,500 N/A 28 N/A 1.00 N/A 3.50 N/A 1.50 N/A .75 N/A 1.00 N/A 5.31 N/A 1/2-13 N/A 1.89 N/A 0.17 N/A 2.56 N/A 3/8 N/A
33515 		N/A Safety Instructions
N/A N/A 2,500 N/A 28 N/A 1.00 N/A 3.50 N/A 1.50 N/A .75 N/A 1.00 N/A 6.87 N/A 1/2-13 N/A 1.89 N/A 0.17 N/A 4.12 N/A 3/8 N/A
33505 		N/A Safety Instructions
N/A N/A 2,500 N/A 28 N/A 1.00 N/A 3.50 N/A 1.50 N/A .75 N/A 1.25 N/A 5.31 N/A 1/2-13 N/A 1.89 N/A 0.17 N/A 2.56 N/A 3/8 N/A
33516 		N/A Safety Instructions
N/A N/A 2,500 N/A 28 N/A 1.00 N/A 3.50 N/A 1.50 N/A .75 N/A 1.25 N/A 6.87 N/A 1/2-13 N/A 1.89 N/A 0.17 N/A 4.12 N/A 3/8 N/A
33517 		N/A Safety Instructions
N/A N/A 4,000 N/A 60 N/A 1.00 N/A 3.50 N/A 1.50 N/A .75 N/A .75 N/A 5.31 N/A 5/8-11 N/A 1.89 N/A 0.17 N/A 2.44 N/A 1/2 N/A
33612 		N/A Safety Instructions
N/A N/A 4,000 N/A 60 N/A 1.00 N/A 3.50 N/A 1.50 N/A .75 N/A .75 N/A 6.87 N/A 5/8-11 N/A 1.89 N/A 0.17 N/A 4.00 N/A 1/2 N/A
33613 		N/A Safety Instructions
N/A N/A 4,000 N/A 60 N/A 1.00 N/A 3.50 N/A 1.50 N/A .75 N/A 1.00 N/A 5.31 N/A 5/8-11 N/A 1.89 N/A 0.17 N/A 2.44 N/A 1/2 N/A
33614 		N/A Safety Instructions
N/A N/A 4,000 N/A 60 N/A 1.00 N/A 3.50 N/A 1.50 N/A .75 N/A 1.00 N/A 6.87 N/A 5/8-11 N/A 1.89 N/A 0.17 N/A 4.00 N/A 1/2 N/A
33604 		N/A Safety Instructions
N/A N/A 4,000 N/A 60 N/A 1.00 N/A 3.50 N/A 1.50 N/A .75 N/A 1.25 N/A 5.31 N/A 5/8-11 N/A 1.89 N/A 0.17 N/A 2.44 N/A 1/2 N/A
33615 		N/A Safety Instructions
N/A N/A 4,000 N/A 60 N/A 1.00 N/A 3.50 N/A 1.50 N/A .75 N/A 1.25 N/A 6.87 N/A 5/8-11 N/A 1.89 N/A 0.17 N/A 4.00 N/A 1/2 N/A
33616 		N/A Safety Instructions
N/A N/A 5,000 N/A 100 N/A 1.00 N/A 3.50 N/A 1.50 N/A .75 N/A 1.00 N/A 5.31 N/A 3/4-10 N/A 1.89 N/A 0.17 N/A 2.31 N/A 5/8 N/A
33714 		N/A Safety Instructions
N/A N/A 5,000 N/A 100 N/A 1.00 N/A 3.50 N/A 1.50 N/A .75 N/A 1.00 N/A 6.87 N/A 3/4-10 N/A 1.89 N/A 0.17 N/A 3.87 N/A 5/8 N/A
33715 		N/A Safety Instructions
N/A N/A 5,000 N/A 100 N/A 1.00 N/A 3.50 N/A 1.50 N/A .75 N/A 1.50 N/A 5.31 N/A 3/4-10 N/A 1.89 N/A 0.17 N/A 2.31 N/A 5/8 N/A
33716 		N/A Safety Instructions
1 - 25 of 53 | Results Per Page | View | Unit of Measure
1 2 3
