Shackle Hoist Rings - Inch
Swivel Hoist Rings (11 Styles)

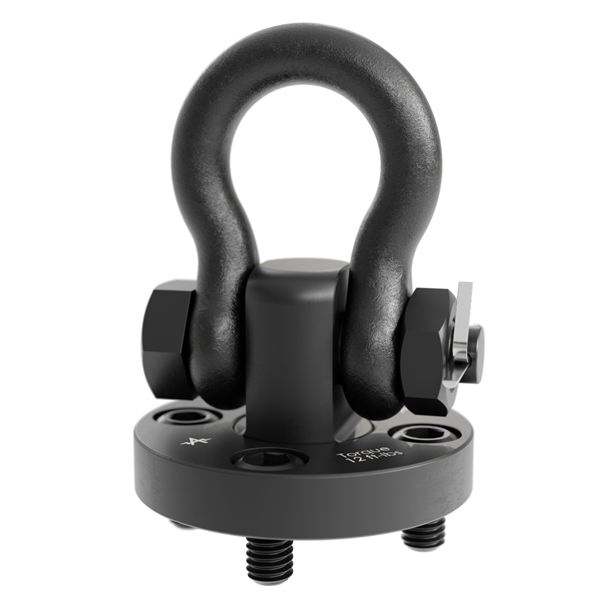

ADB Shackle Hoist Rings are designed for OEM applications and permanent mounting on dies, molds, fixtures, and equipment. With capacities from 2,000 to 24,000 lbs and a 5:1 design factor, these versatile hoist rings can be bolted or welded in place.
Constructed from AISI 4140 material with comprehensive dimensional data and mounting specifications, Shackle Hoist Rings meet ASTM E1444, MIL-STD-165, and MIL-STD-209 standards for reliable performance.
Perfect for permanent lifting points on heavy structures and equipment, Shackle Hoist Rings provide a robust solution for custom rigging and material handling applications.
Item # |
CAD |
IntegrationID |
Rated Load (lbs) |

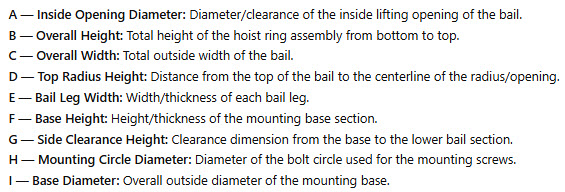

A (in) |
B (in) |
C (in) |
D (in) |
F (in) |
H (in) |
J (in) |
E (in) (+/-0.12) |
G (in) |
I (in) |
Screw Size |
Material |
Safety Instructions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MA-36510SH |
CAD
N/A
|
Rated Load (lbs) N/A 2,000 | A (in) N/A 1.03 | B (in) N/A 2.96 | C (in) N/A 1.78 | D (in) N/A 0.38 | F (in) N/A 0.40 | H (in) N/A 1.56 | J (in) N/A 2.17 | E (in) (+/-0.12) N/A 1.43 | G (in) N/A 0.91 | I (in) N/A 2.10 | Screw Size N/A 1/4-20 × 1/2 | Material N/A AISI 4140 | Safety Instructions N/A Safety Instructions | |
| MA-36520SH |
CAD
N/A
|
Rated Load (lbs) N/A 3,000 | A (in) N/A 1.16 | B (in) N/A 3.55 | C (in) N/A 2.03 | D (in) N/A 0.44 | F (in) N/A 0.52 | H (in) N/A 1.76 | J (in) N/A 2.51 | E (in) (+/-0.12) N/A 1.76 | G (in) N/A 1.16 | I (in) N/A 2.40 | Screw Size N/A 5/16-18 × 1/2 | Material N/A AISI 4140 | Safety Instructions N/A Safety Instructions | |
| MA-36530SH |
CAD
N/A
|
Rated Load (lbs) N/A 4,000 | A (in) N/A 1.31 | B (in) N/A 3.91 | C (in) N/A 2.31 | D (in) N/A 0.50 | F (in) N/A 0.52 | H (in) N/A 2.10 | J (in) N/A 2.80 | E (in) (+/-0.12) N/A 1.91 | G (in) N/A 1.21 | I (in) N/A 2.90 | Screw Size N/A 3/8-16 × 5/8 | Material N/A AISI 4140 | Safety Instructions N/A Safety Instructions | |
| MA-36540SH |
CAD
N/A
|
Rated Load (lbs) N/A 6,500 | A (in) N/A 1.69 | B (in) N/A 4.97 | C (in) N/A 2.94 | D (in) N/A 0.69 | F (in) N/A 0.64 | H (in) N/A 2.56 | J (in) N/A 3.53 | E (in) (+/-0.12) N/A 2.41 | G (in) N/A 1.51 | I (in) N/A 3.50 | Screw Size N/A 7/16-14 × 3/4 | Material N/A AISI 4140 | Safety Instructions N/A Safety Instructions | |
| MA-36550SH |
CAD
N/A
|
Rated Load (lbs) N/A 13,000 | A (in) N/A 2.28 | B (in) N/A 6.85 | C (in) N/A 4.03 | D (in) N/A 0.97 | F (in) N/A 0.90 | H (in) N/A 3.40 | J (in) N/A 4.71 | E (in) (+/-0.12) N/A 3.31 | G (in) N/A 2.06 | I (in) N/A 4.60 | Screw Size N/A 5/8-11 × 1 | Material N/A AISI 4140 | Safety Instructions N/A Safety Instructions | |
| MA-36560SH |
CAD
N/A
|
Rated Load (lbs) N/A 19,000 | A (in) N/A 2.91 | B (in) N/A 8.75 | C (in) N/A 5.16 | D (in) N/A 1.25 | F (in) N/A 1.14 | H (in) N/A 4.00 | J (in) N/A 5.09 | E (in) (+/-0.12) N/A 4.01 | G (in) N/A 2.61 | I (in) N/A 5.40 | Screw Size N/A 3/4-10 × 1 1/4 | Material N/A AISI 4140 | Safety Instructions N/A Safety Instructions | |
| MA-36570SH |
CAD
N/A
|
Rated Load (lbs) N/A 24,000 | A (in) N/A 3.25 | B (in) N/A 9.68 | C (in) N/A 5.75 | D (in) N/A 1.38 | F (in) N/A 1.30 | H (in) N/A 4.50 | J (in) N/A 6.51 | E (in) (+/-0.12) N/A 4.51 | G (in) N/A 2.91 | I (in) N/A 6.10 | Screw Size N/A 7/8-9 × 2 | Material N/A AISI 4140 | Safety Instructions N/A Safety Instructions |
