    Features

  • Ideally suited for medical, high-tech and institutional equipment.
  • Sleek, advanced design combines corrosion and chemical resistance with silent operation.
  • Molded from engineered, reinforced thermoplastics for trouble-free performance even in wash-down applications.
  • Precision ball bearing swivel raceway for smooth, effortless swivel action

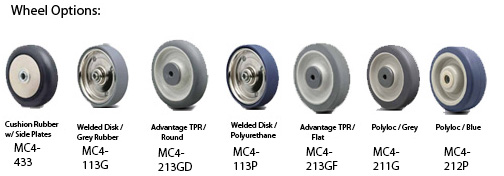

  • Non-marking wheel design.
  • Steel top plates and mounting stems are zinc plated to resist rust.
  • Axle: 3/8" diameter riveted.
  • Top Plate Sizes (swivel & rigid): to order, add Plate Mounting Code to end of model number.

  • PLT 2: Top Plate Size 2-3/8” x 3-5/8” Bolt Hole Spacing 1-3/4” x 3” Mounting Bolt Size 5/16”.
  • PLT 3: Top Plate Size 3-1/8” x 4-1/8” Bolt Hole Spacing 2-3/8” x 3-7/16”” Mounting Bolt Size 5/16”
  • PLT 5: Top Plate Size 3-3/4” x 4-1/2” Bolt Hole Spacing 2-5/8” x 3-5/8 ” to 3” x 3” Mounting Bolt Size 3/8”.
  • PLT 7: Top Plate Size 3-1/2” x 3-1/2” Bolt Hole Spacing 2-5/8” x 2-5/8 ” Mounting Bolt Size 9/32”
  • Spring Ring Stem Sizes: To order, specify stem code number and add to end of caster model number.

  • STEM 1: .845” diameter round x 2-3/16” long.
  • STEM 2: .865” diameter round x 2-3/16” long.
  • STEM 3: .860” diameter SQUARE x 2-3/16” long.
  • Threaded Stem Sizes: to order, specify stem code number and add to end of caster model number.

  • STEM 1: 1/2” diameter –13 x 3/4” long.
  • STEM 2: 1/2” diameter –13 x 1” long.
  • STEM 3: 1/2” diameter –13 x 1-1/2” long.
  • STEM 5: 1/2” diameter –20 x 2-1/4” long.
  • STEM 6: 5/8” diameter –11 x 1-1/4” long.
  • STEM 7: 5/8” diameter – 18 x 1-3/4” long
  • STEM 8: 3/4” diameter – 10 x 1” long.
  •

    Brake options are available, contact Sales
